Data Sanitization Standards
NIST 800-88 Media Sanitization: Complete Guide for Your Organization
Understand NIST SP 800-88 Rev. 1 — the gold standard for data sanitization. Learn how Clear, Purge, and Destroy protect your organization from residual data exposure.
Understanding NIST SP 800-88
NIST Special Publication 800-88 — formally titled "Guidelines for Media Sanitization" — is the U.S. government's definitive framework for data disposal. Originally released in 2006 and updated in December 2014 as NIST SP 800-88 Rev. 1, it has become the most widely referenced data sanitization standard in both the public and private sectors worldwide.
Unlike older wiping methods, NIST 800-88 is explicitly designed to be media-agnostic and future-ready — covering magnetic drives, SSDs, NVMe, USB drives, smartphones, and any storage technology yet to emerge.
Why NIST 800-88 Matters
NIST 800-88 is the data sanitization standard now referenced by the US Department of Defense in the NISPOM official document. Using a certified tool like D-Secure Drive Eraser helps organizations meet requirements for HIPAA, GDPR, PCI-DSS, and other regulatory frameworks.
What Is NIST 800-88?
NIST 800-88 is a document published by the National Institute of Standards and Technology (NIST) that provides guidance for making decisions regarding media sanitization. The standard's own words capture the problem it solves:
"An often rich source of illicit information collection is either through dumpster diving for improperly disposed hard copy media, acquisition of improperly sanitized electronic media, or through keyboard and laboratory reconstruction of media sanitized in a manner not commensurate with the confidentiality of its information."
The standard formally defines sanitization as:
"A process that renders access to target data on the media infeasible for a given level of effort."
The framework helps organizations choose a sanitization method based on the sensitivity of the data and the intended disposition of the storage media.
CLEAR
Logical techniques to sanitize data in all user-addressable storage locations.
PURGE
Techniques that render data recovery infeasible even with laboratory equipment.
DESTROY
Physical destruction making data recovery permanently impossible.
Check Your Compliance Instantly
Not sure if your storage media needs Clear, Purge, or Destroy treatment? Use our interactive NIST 800-88 Compliance Checker to get a certified recommendation in seconds.
What Does "Media Sanitization" Actually Mean?
Every IT security team locks down networks, hardens endpoints, and monitors threats in real time. But there's one vulnerability that's easy to overlook: data left behind on storage media that has reached end-of-life.
"Infeasible" doesn't mean difficult — it means effectively impossible given the resources and techniques an adversary might realistically deploy. The standard of infeasibility is set by the confidentiality level of the data itself, not the device type.
Unlike the older DoD 5220.22-M three-pass wiping method — which hasn't been updated in years and doesn't adequately address modern flash-based storage — NIST 800-88 is explicitly designed to be media-agnostic and future-ready. Its principles apply to magnetic drives, SSDs, NVMe, USB flash drives, smartphones, removable media, servers, and any storage technology that doesn't yet exist.
Its influence has also crossed borders. Key principles from NIST 800-88 have been incorporated into major international frameworks such as ISO/IEC 27040:2015, making it a truly global reference document for information security teams.
NIST also takes a lifecycle view of sanitization. It's not a last-minute concern when a hard drive gets retired — it must be factored into information system design from day one. Organizations need to understand, at the point of purchasing and deploying storage infrastructure, what sanitization methods will be available to them when that media eventually needs to be decommissioned, transferred, or retired.
This lifecycle planning also accounts for the many in-between moments where data can be exposed: during infrastructure upgrades, third-party maintenance windows, device transfers between departments, or any time media moves from a higher security environment to a lower one.
What Problem Does NIST 800-88 Actually Solve?
The single greatest data security vulnerability in most organizations isn't a network breach — it's the assumption that data has been erased.
NIST 800-88 addresses this directly by demanding verification and documentation. A device that has been "wiped" but not verified and certified is not compliant, regardless of how thorough the intent was.
NIST Structured Decision-Making
- 1
Categorize the data
What is its confidentiality classification?
- 2
Assess the storage medium
What type of technology stores this data?
- 3
Evaluate the risk
What happens if this data is recovered?
- 4
Determine future use
Will the device be reused, donated, sold, or destroyed?
Why Common Data Removal Methods Often Fall Short
Before NIST 800-88, organizations relied on a handful of conventional methods to remove data from decommissioned devices. Each of these has significant limitations:
Degaussing
Degaussing uses a powerful magnetic field to destroy data on magnetic media. However, it is completely ineffective on solid-state drives, NVMe, and other flash-based storage, which now constitute the majority of enterprise and consumer devices. NIST 800-88 explicitly states: "Degaussing, a fundamental way to sanitize magnetic media, no longer applies in most cases for flash memory-based devices." Even for magnetic drives, evolving high-coercivity recording technologies are making older degaussers increasingly inadequate.
Overwriting
Single-pass overwriting is actually highly effective on magnetic hard drives — NIST confirms that one pass is generally sufficient. The problem lies in coverage gaps: overwriting through standard Read/Write commands only addresses user-accessible Logical Block Addresses (LBAs). Defective sectors, reallocated blocks, and unaddressed areas of flash-based storage may remain untouched, preserving recoverable data.
Physical Destruction (Shredding, Incineration, Pulverizing)
Physical destruction is sometimes necessary — especially for media that is damaged beyond all other sanitization options. But as storage density increases, data can survive on surprisingly small chip fragments, meaning effective destruction requires increasingly fine shred sizes. Furthermore, physical destruction permanently removes the asset from any possibility of reuse, donation, or resale — carrying both economic and environmental costs.
Encryption and Cryptographic Erasure
Encryption protects data in use, and cryptographic erasure (destroying the encryption key) can be an effective sanitization method when properly implemented. However, there is no reliable way to externally verify that all encryption keys have been completely and permanently destroyed. Without verification, cryptographic erasure cannot be treated as guaranteed.
NIST 800-88's Three-Tier Framework: Clear, Purge & Destroy
NIST 800-88 establishes three distinct methods of sanitization, each calibrated to different levels of data sensitivity and intended future use of the media.
When to Use NIST Clear
- ✓Media will be reused within the organization
- ✓Data is of lower sensitivity
- ✓Quick sanitization is needed for routine refreshes
When to Use NIST Purge
- ✓Media will leave organizational control (resale, donation)
- ✓Data is moderately to highly sensitive (PII, Financial, PHI)
- ✓Compliance with HIPAA, GDPR, PCI-DSS is required
Why Verification Is the Cornerstone of NIST Compliance
Completing the erasure process is necessary — but it is not sufficient.
NIST 800-88 is explicit: verification is mandatory.
"Verifying the selected information sanitization and disposal process is an essential step in maintaining confidentiality. Two types of verification should be considered."
Those two types are:
- 1.Full verification — Confirming that sanitization was applied to every piece of media in the sanitization batch
- 2.Sample verification — Selecting a representative subset of sanitized media and confirming that no data is recoverable, ideally conducted by personnel who were not part of the original sanitization process
Validation should extend to:
- ✓The equipment used — does it operate correctly and produce accurate results?
- ✓Staff competencies — are operators trained to use the tools and evaluate the outputs?
- ✓The results themselves — is data confirmed as irrecoverable?
The Erasure Certificate: Your Proof of Compliance
No NIST 800-88-compliant sanitization process is complete without a tamper-proof erasure certificate for each device processed. This certificate functions as the legal and audit-ready evidence that data has been permanently and irreversibly removed. A proper certificate documents:
- ✓Device identification — serial number, make, model, capacity
- ✓Sanitization method — Clear, Purge, or Destroy
- ✓Technique used — overwrite pattern, Secure Erase command, block erase, cryptographic erasure
- ✓Verification result — confirmation that the sanitization was successful
- ✓Operator and tool information — who performed the erasure and with what software
- ✓Timestamp — date and time of sanitization
For organizations in regulated industries — healthcare (HIPAA), financial services, government, or any sector subject to data protection requirements — an auditable certificate isn't optional. It's the evidence that closes the compliance loop.

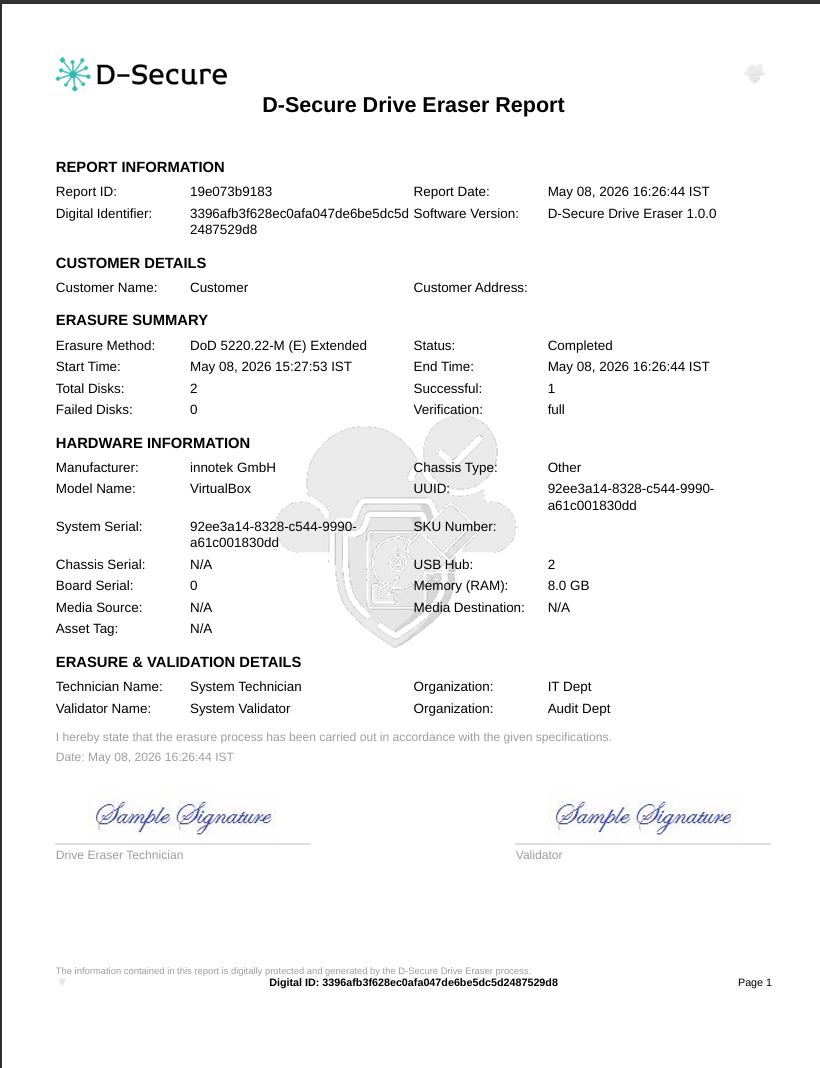

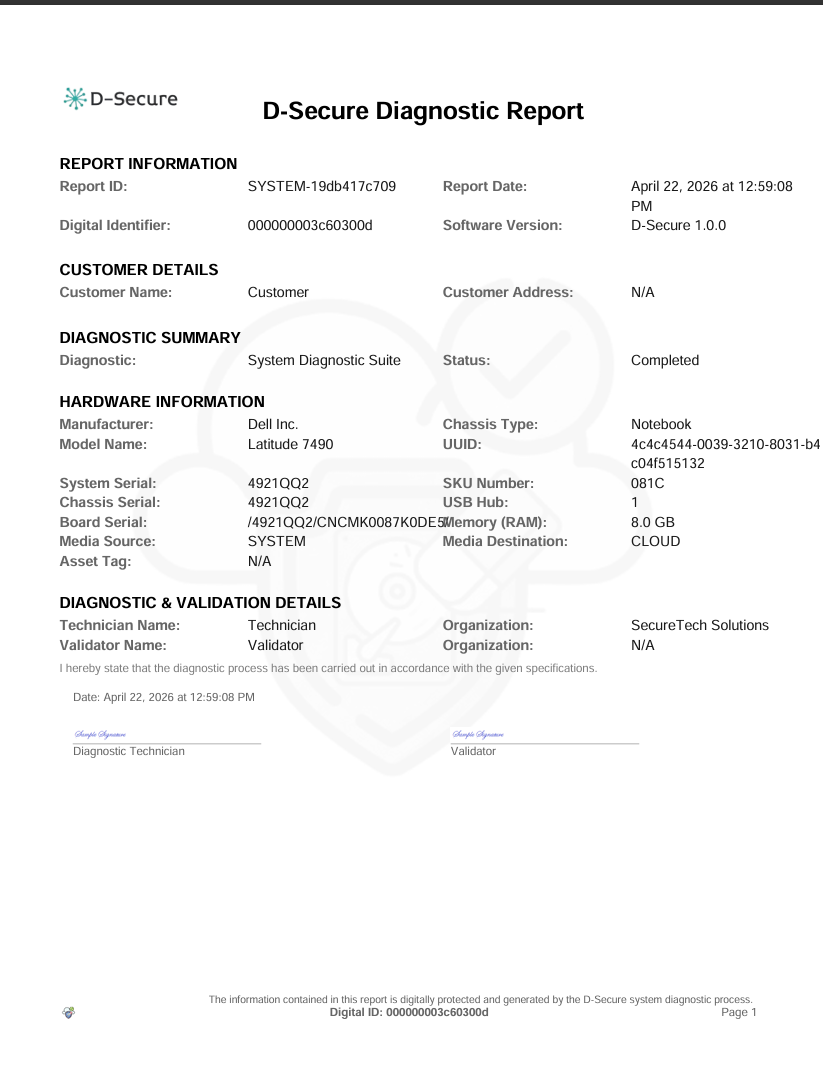

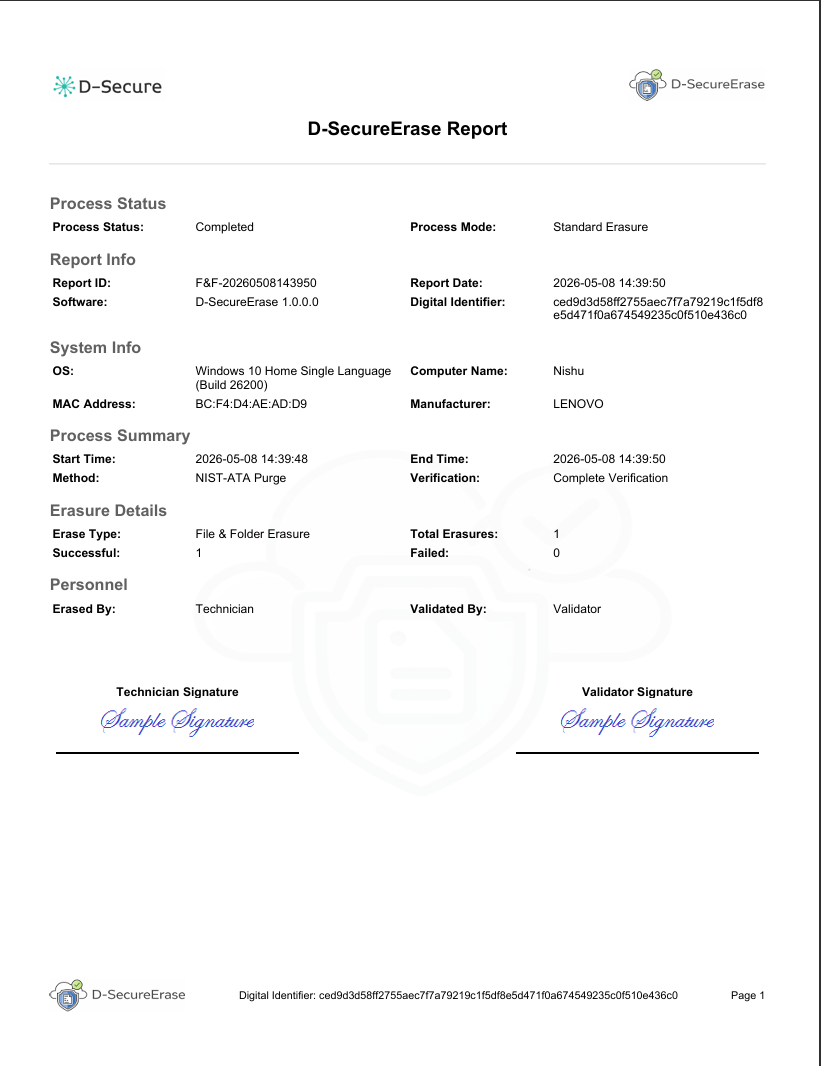

Sample Compliance Reports
These tamper-proof reports provide irrefutable evidence of data sanitization and hardware health.
Putting NIST 800-88 Into Practice with D-Secure
D-Secure Drive Eraser is built to deliver full NIST SP 800-88 Rev. 1 compliance across your entire device lifecycle — whether you're decommissioning laptops, retiring data center servers, processing ITAD returns, or managing end-of-life mobile devices.
- NIST 800-88 Clear and Purge support for HDD, SSD, NVMe, and removable media
- Automated post-erasure verification with drive-level reporting
- Tamper-proof, digitally signed erasure certificates for every processed device
- Simultaneous erasure across up to 32 drives per machine
- Cloud console for centralized audit trail management across multiple sites
- Support for Windows, macOS, and Linux across x64, ARM64, and x86 architectures
Key Takeaways
| Topic | What NIST 800-88 Says |
|---|---|
| Sanitization definition | Rendering data access infeasible for a given threat level |
| Standard categories | Clear (logical), Purge (firmware/physical), Destroy (physical) |
| Degaussing on SSDs | Ineffective — explicitly excluded by NIST |
| Overwriting | Effective on HDD; must address hidden areas; single pass usually sufficient |
| Verification | Mandatory — full verification or representative sampling |
| Certificate | Required for audit-ready, legally defensible compliance |
| DoD 5220.22-M | Outdated; NIST 800-88 is the recognized successor |
Executive Summary & Next Steps
Choosing between Clear, Purge, and Destroy depends on your data's sensitivity and the hardware's next destination. For most enterprise use cases, Purge is the recommended standard as it addresses internal drive sectors and provides a high level of security without destroying the hardware's value.
Recommended Reading:
✓Compliance Checker
Not sure which method your hardware needs? Use our NIST 800-88 compliance tool.
Start Compliance CheckQuick Reference
Standard
NIST SP 800-88 Rev. 1Focus
Media-agnostic data sanitization
Status
Global benchmark for compliance
Certified NIST 800-88 Media Sanitization
D-Secure provides enterprise tools needed to implement Clear, Purge, and Destroy methods across your entire IT infrastructure — with full audit trails and certified reports.
Global Protection Standards: NIST 800-88 Media Sanitization: What It Is and Why Your Organization Needs It
The security of enterprise data at its end-of-life has evolved from a technical recommendation to a strict legal mandate. Whether it is international frameworks like NIST 800-88 or regional legislations such as the Digital Personal Data Protection Act, the core principle remains consistent: data must be irrecoverably destroyed through verifiable means to prevent unauthorized access and ensure total privacy. When discussing NIST 800-88 Media Sanitization: What It Is and Why Your Organization Needs It, establishing a verifiable and compliant security baseline is absolutely paramount.
Enterprise-grade storage arrays often utilize complex logical structures and proprietary controllers that make simple formatting operations virtually useless for security. These methods only remove the file pointers, leaving the actual binary data intact on the magnetic or flash surface. Our advanced erasure algorithms are designed to interface directly with these hardware layers, overwriting every sector with NIST-compliant patterns and performing multi-pass verifications to ensure that even laboratory-grade forensic recovery is impossible. Modern architectures like **SSDs, NVMe, and Mobile Flash** use wear-leveling that leaves traces in hidden blocks. Professional Data Erasure Software and Mobile Tools are essential to bridge this gap. Without these specialized tools, your organization remains vulnerable to data remanence attacks.
"The difference between 'deletion' and 'sanitization' is the difference between hiding a secret and destroying it forever. In the world of enterprise security, only the latter provides true peace of mind."
The NIST 800-88 Sanitization Hierarchy
The National Institute of Standards and Technology (NIST) provides the gold standard for media sanitization. Understanding these levels is vital for any security professional.
- 1
Clear (Logical Sanitization)
Protects against simple, non-invasive data recovery techniques (keyboard recovery). This involves a standard overwrite of all addressable locations on the storage media with non-sensitive data.
- 2
Purge (Physical/Cryptographic)
Renders data recovery infeasible even with specialized laboratory tools. This level includes **Cryptographic Erase (CE)** and firmware-level commands that address physical blocks hidden from the OS.
- 3
Destroy (Physical Destruction)
The final state for media that has reached its absolute end-of-life or is physically damaged. Methods include melting, shredding, incinerating, or pulverizing the media into tiny fragments.
The D-Secure Audit Advantage
Standard wiping tools often leave you in the dark. D-Secure provides a **Tamper-Proof Audit Trail** that acts as your legal shield. Every sanitization process generates a 100% verifiable certificate of destruction.
Comprehensive Metadata
Capture every detail: Drive Serial Number, Model, Capacity, Interface Type, and Physical Health metrics.
Method Verification
Documentation of the exact algorithm used (NIST 800-88, DoD 5220.22-M, HMG IS5) and the number of passes completed.
Post-Erasure Readback
Automated sampling of the entire drive surface to verify that the pattern was written correctly and no original data remains.
This level of documentation is essential for passing rigorous ISO 27001, HIPAA, SOX, GDPR, and PCI-DSS 4.0 audits.
Why Professional Sanitization Matters Across Industries
The Circular Economy
Shredding functional drives is an environmental and economic waste. Secure software-based erasure enables safe resale and reuse of hardware, significantly reducing Scope 3 carbon emissions and supporting your organization's ESG and sustainability goals.
Zero-Trust Disposal
In a Zero-Trust environment, the security perimeter extends to the very end of the hardware lifecycle. A single lost SSD or improperly wiped laptop can cost millions in fines. Implementing a strictly enforced disposal policy ensures that sensitive data never leaves your controlled premises.
Legal Immunity
Relying on "we think we wiped it" is not a legal defense. With a digitally signed, tamper-proof certificate of destruction, your organization is legally protected against claims of data negligence. This is the ultimate insurance policy for your corporate data assets.
**Industry Expert Insight:** Across all industries, the cost of a data breach is at an all-time high, averaging over $4.45 million per incident. Implementing a standardized, software-driven erasure policy across all branch offices and remote workers is the single most effective way to close the 'disposal gap' in your security perimeter.
Compliance Framework Comparison
How D-Secure maps to global data protection requirements.
| Framework / Law | Primary Region | Core Erasure Requirement | D-Secure Capability |
|---|---|---|---|
| GDPRGeneral Data Protection Regulation | European Union | Article 17: Right to Erasure (Be Forgotten) | Automated Compliance |
| DPDP Act 2023Digital Personal Data Protection | India | Mandatory deletion once purpose is served | Localized Compliance |
| NIST 800-88 R1Media Sanitization Guidelines | Global Standard | Purge and Clear Verification Standards | Certified Native Support |
| PCI DSS 4.0Payment Card Industry Standard | Global Finance | Secure destruction of cardholder data | Military-Grade Shredding |
| HIPAAHealth Insurance Portability | United States | Safe disposal of PHI and ePHI records | Audit-Ready Reporting |
A Unified Data Sanitization Suite
True security isn't achieved with a single tool—it requires an integrated ecosystem that covers every stage of the hardware lifecycle. From the initial diagnostic check to the final certificate of erasure, D-Secure provides the end-to-end visibility your enterprise demands.
Drive Eraser
High-volume HDD/SSD sanitization for enterprise data centers and ITAD environments. Support for 100+ simultaneous erasures.
Drive Diagnostic
Perform 60+ hardware health checks before sanitization. Identify failed drives and maximize the resale value of healthy assets.
File Eraser
Targeted secure shredding for individual files and folders on active Windows and Server environments. Ideal for daily compliance.
VM Eraser
Sanitize individual virtual disks and snapshots without affecting the host environment. Support for VMware, Hyper-V, and Azure.
Protect Your Future & Reputation
"By choosing verifiable, software-based erasure over primitive physical destruction, you are protecting your brand reputation and leading the charge toward a sustainable, carbon-neutral IT future."
Trusted by Fortune 500 companies and government agencies globally. 100% Audit-Ready.
